EVA

Availability:
Product Description

EVA01

Product Name

Ethylene Vinyl Acetate Copolymer(EVA)

Appearance

Colorless, odorless, non-toxic, translucent solid substance

CAS No.

24937-78-8

HS code

3901909000

Application

Shoe making industry, photovoltaic materials


EVA UE1803

ITEM

Specifications

RESULTS OF ANALYSIS

Black grain,PCS/KG

0

0

Color grain,PCS/KG

≤10

0

Big and small grain ,PCS/KG

≤10

0

Trailing grain,PCS/KG

≤20

2

Floccule,g/kg

≤0.02

0

VA,%(wt)

18(+/-)1

17.3

Melt mass flow rate,g/10min

2.8(+/-)0.5

3.17

Density,(23 ℃)g/m3

As report

0.937

Melting peak temperature,℃

As report

90


EVA UE2825

ITEM

Specification

Black grain,PCS/KG

0

Color grain,PCS/KG

≤7

Snakeskin grain,PCS/KG

≤1

Trailing grain,PCS/KG

As report

Floccule,g/kg

≤0.5

VA,%(wt)

27.5(+/-)1

Tensile break stress,Mpa

≥6

Yellow index

≤2

Melt mass flow rate,g/10min

25(+/-)2.5

Tensile fracture nominal strain,%

≥600


EVA 28%

PROPERTIES

TEST METHOD

UNIT

Data

VA Content


%

28.0

Density

ASTM D1505

g/cm3

0.954

Melt Index MI2.16

ASTM D1238

g/10min

15

Tensile Strength (Break)

ASTM D638

Kg/cm2

80

Elongation at break

ASTM D638

%

>800

Melting point

ASTM D-3418

69

Hardness

ASTM D2240

Shore D

20


EVA02

It is widely used in foam shoe materials, functional shed films, packaging molds, hot melt adhesives, wires and cables, toys and other fields.

1. The main products of EVA with vinyl acetate content below 5% are films, wires and cables, LDPE modifiers,
adhesives, etc.;

2. EVA products with vinyl acetate content between 5% and 10% are elastic films, etc.;

3. EVA with 20-28% vinyl acetate is mainly used for hot melt adhesives and coating products.

EVA03

In the shoe industry, it is used in the soles and interior materials of high-end tourist shoes, hiking shoes, slippers, sandals

EVA04

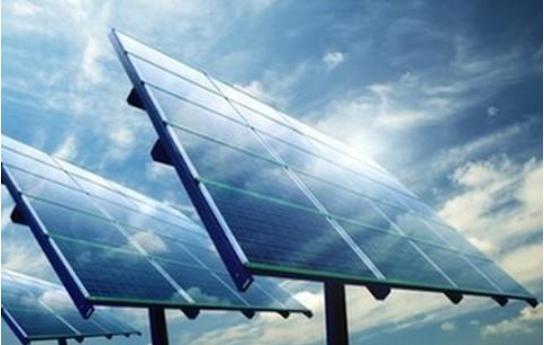

It is also widely used in the field of new energy, such as photovoltaic materials, solar cell adhesives, etc.

EVA05

Toys

EVA06

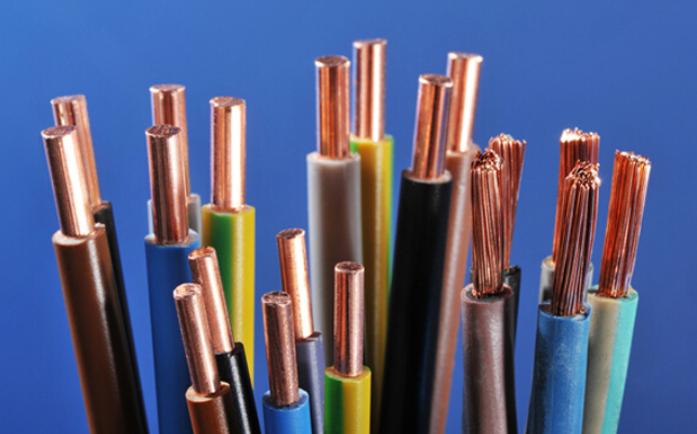

Wires and cables

Product Introduction:

EVA is a copolymer of ethylene and acetic acid. The Chinese chemical name: Ethylene Vinyl Acetate Copolymer, and the English chemical name: Ethylene Vinyl Acetate Copolymer. EVA is a common kind of material in daily life. The finished product made of it has good softness, shock resistance, skid resistance and strong pressure resistance. Because EVA material has strong softness, chemical resistance and good elasticity, EVA has a wide range of applications, especially in the shoe industry, where it is used in the soles and interior materials of mid-to-high-end tourist shoes, hiking shoes, slippers, and sandals. It is also widely used in the field of new energy, such as photovoltaic materials and solar cell adhesives.
1. The main products of EVA with vinyl acetate content below 5% are films, wires and cables, LDPE modifiers, adhesives, etc.; 2. EVA products with vinyl acetate content between 5% and 10% are elastic films, etc.; 3. EVA with 20-28% vinyl acetate is mainly used for hot melt adhesives and coating products; EVA is made by copolymerization of LLDPE (linear low density polyethylene) and acetic acid (VA).
EVA is characterized by good softness, rubber-like elasticity, good flexibility, transparency and surface gloss at -50°C, good chemical stability, good anti-aging and ozone resistance strength, no toxicity. Good blending, coloring and molding processability with fillers.


Applications:

1. It is widely used in foaming shoe materials, functional shed films, packaging molds, hot melt adhesives, wires and cables, toys and other fields. 2. EVA products with vinyl acetate content between 5% and 10% are elastic films, etc.; 3. EVA with 20-28% vinyl acetate is mainly used for hot melt adhesives and coating products; 4. Vinyl acetate content is 5%~45%. The main products are films (including agricultural films) and sheets, injection molding, molded products, foamed products, hot melt adhesives, etc.


Package and Storage:

The product is available either in 500-700 kgs plastic bags or in 25kgs craft paper bags. This product should be stored in the warehouse. Prevent moisture, prevent sun direct illuminate, the normal temperature in warehouse is not more than 35℃, and humidity is not more than 85%.


SGMS:

PROPERTIES

TEST METHOD

UNIT

VALUE

Melt Flow Index(230℃x2.16kg)

ASTM D-1238

g/10 min

2.5

Density

ASTM D-792

g/cm3

0.938

Vinyl Acetate content

-

%

18

Tensile Strength at Yield

ASTM D-638

kg/cm2

45

Tensile Strength at break

ASTM D-638

kg/cm2

150

Tensile Elongation at break

ASTM D-638

%

800

Rockwell hardness

ASTM D-785

R scale

100

Soften point

ASTM D-1525

60

Melting point

DSC

84

Brittleness point

ASTM D746

<-70
